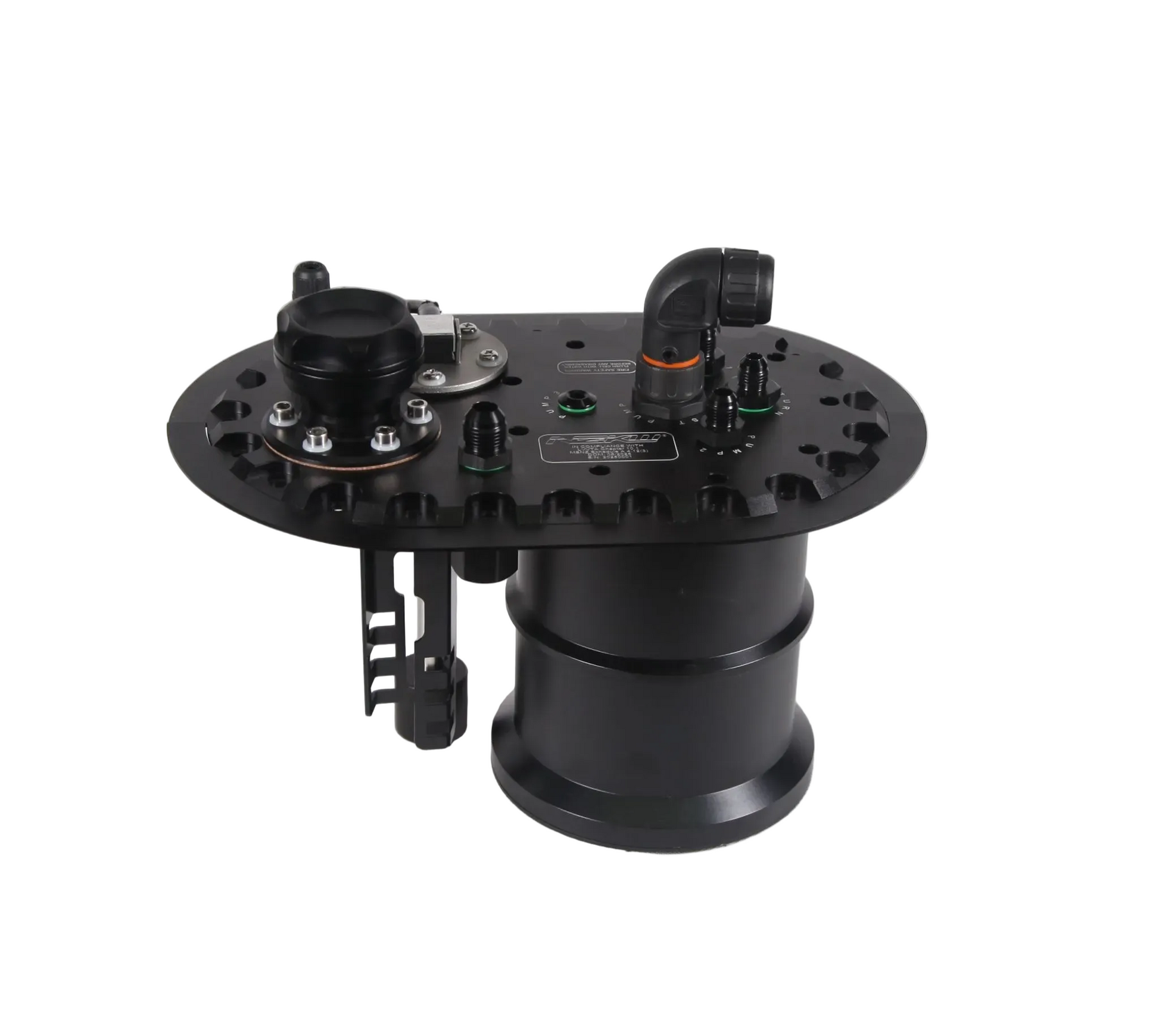

Quadro Pump Weld In Fuel Cradle and Surge Tank

NZKW AUSTRALIA ALLOY FUEL CELL WITH BILLET FUEL CRADLE

The NZKW Australia Alloy Fuel Cell with Billet Fuel Cradle is a premium motorsport fuel system designed for high-performance street, drift, drag, circuit, and rally applications. Manufactured from 3mm T5052 marine-grade aluminium and featuring a precision CNC-machined T6061 billet fuel cradle with an integrated 2.8L surge tank, this fuel cell delivers exceptional fuel control and reliability under extreme driving conditions. It is the ideal solution for professional motorsport builds and custom performance vehicles.

What's Included
• 1 x Billet T6061 Fuel Cradle
• 1 x Weld-On Flange (supplied with fuel cradle)
• 1 x 50mm Filler Cap
• 1 x Fuel Level Sender (0–190 Ohms) With Plug

2x Electrical connectors for  lift pump and main pumps

Specifications
Material: 3mm T5052 Marine Grade Aluminium
Fuel Cradle Material: CNC Machined T6061 Billet Aluminium
Integrated Surge Tank Capacity: 2.8L
Fuel Pump Capacity: 3 x In-Tank Pumps, 1 x Intake Lift Pump
Outlet Ports: 3 x 6AN ORB
Return Port: 1 x 8AN ORB
Vent Port: 1 x 6AN
Filler Cap: 50mm
Fuel Level Sender: 0–190 Ohms Included

Pre Built Fuel Cell Sizes Available

30L (8 Gallon)
Dimensions: 605mm (L) × 315mm (W) × 195mm (H)
Capacity: 30 Litres (8 Gallons)

60L (16 Gallon)
Dimensions: 602mm (L) × 417mm (W) × 242mm (H)
Capacity: 60 Litres (16 Gallons)

Key Features
• Manufactured from durable 3mm T5052 marine-grade aluminium
• Precision CNC-machined T6061 billet fuel cradle
• Integrated 2.8L surge tank for improved fuel delivery under high G-forces
• Supports up to three in-tank fuel pumps and one lift pump
• Multiple ORB outlet and return ports for flexible plumbing options
• Includes fuel level sender and 50mm filler cap
• Designed for custom motorsport and high-performance fuel systems
• Corrosion-resistant construction for long-term durability

Compatible With / Applications
• Drift vehicles
• Circuit and track cars
• Drag racing vehicles
• Rally cars
• Time attack builds
• Off-road competition vehicles
• Custom motorsport builds
• High-performance street vehicles
• EFI fuel systems
• Custom fuel system installations

Built for Performance & Reliability
The NZKW Australia Alloy Fuel Cell with Billet Fuel Cradle is engineered to provide consistent fuel delivery during the most demanding driving conditions. The integrated 2.8L billet surge tank helps prevent fuel starvation during hard acceleration, braking, and cornering, while the ability to accommodate multiple fuel pumps makes it ideal for high-horsepower applications. Constructed from premium marine-grade aluminium and supplied with internal baffle foam, this fuel cell is built to deliver exceptional durability, safety, and performance for both professional motorsport and serious enthusiast builds.
