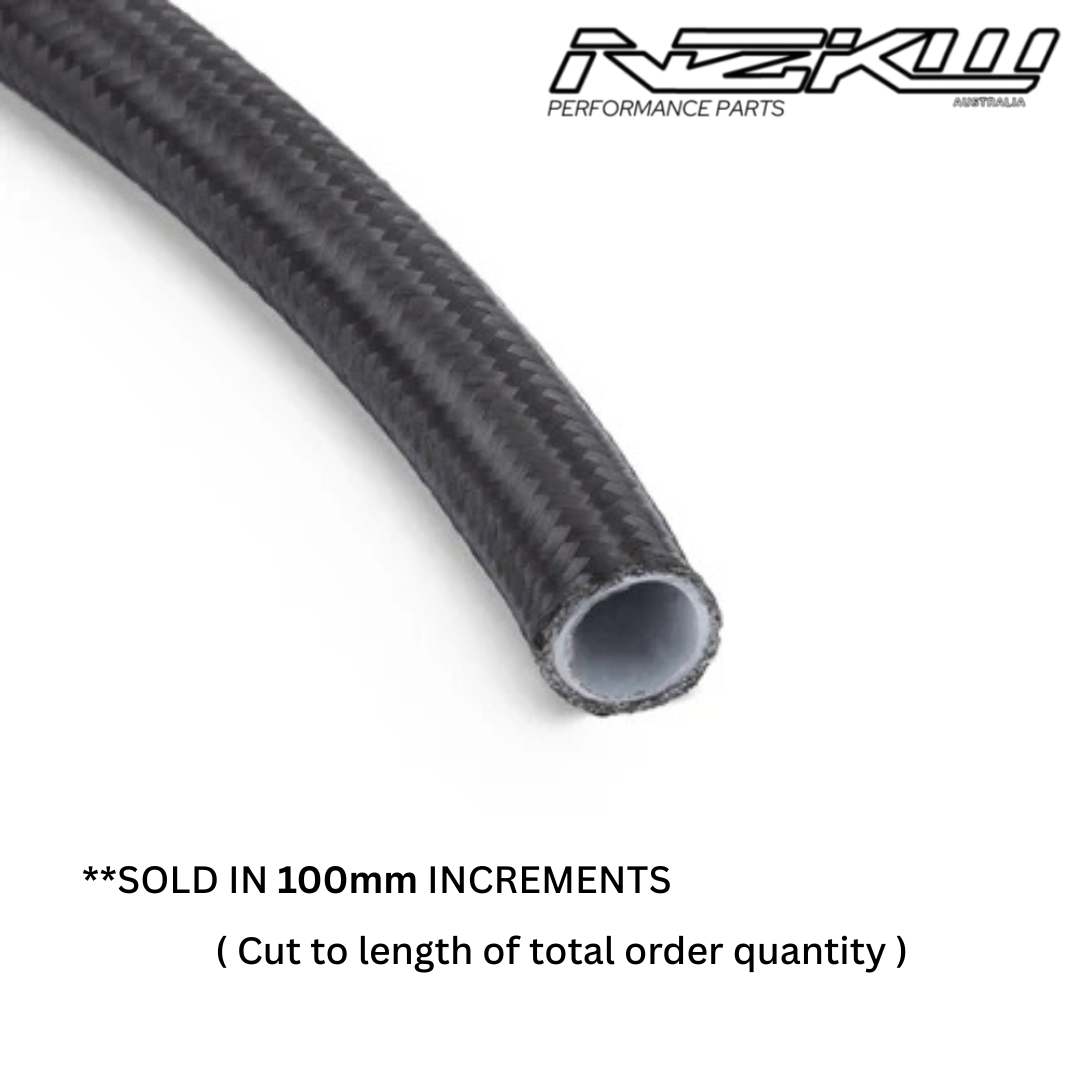

200 Series Braided PTFE Teflon Hose

 NZKW 200 Series Braided PTFE Teflon Hose – High Pressure Motorsport Hose (SOLD IN 100MM)

The NZKW Australia 200 Series Braided PTFE Teflon Hose is engineered for extreme performance applications requiring maximum chemical resistance, high pressure capability, and long-term reliability. Designed for use with 200, 550 (full flow), and 700 series crimp-style hose ends, this hose is ideal for demanding motorsport and performance systems including fuel, brake, oil, hydraulic, and vacuum applications. Supplied cut-to-length, it delivers a professional and custom-fit solution for advanced fluid systems.

Available Sizes / Options

Sold per 100mm increments (cut to length based on total order quantity)
Example: Order 10 = supplied as 1 metre continuous length

Specifications

Temperature range: -70°C to 250°C
Application: High-performance fluid and hydraulic systems
Compatibility: 200 Series hose ends, 550 Series (full flow), 700 Series (crimp style)
Cutting: Custom cut-to-length (non-refundable product)

Size Specifications

3AN
Hose I.D: 0.14" (3.56mm)
Hose O.D: 0.25" (6.35mm)
Operating Pressure: 4000 psi
Burst Pressure: 12000 psi

4AN
Hose I.D: 0.19" (4.83mm)
Hose O.D: 0.30" (7.62mm)
Operating Pressure: 4000 psi
Burst Pressure: 12000 psi

6AN
Hose I.D: 0.32" (8.13mm)
Hose O.D: 0.32" (10.92mm)
Operating Pressure: 3000 psi
Burst Pressure: 10000 psi

8AN
Hose I.D: 0.42" (10.67mm)
Hose O.D: 0.54" (13.72mm)
Operating Pressure: 2500 psi
Burst Pressure: 8000 psi

10AN
Hose I.D: 0.51" (12.95mm)
Hose O.D: 0.63" (16.00mm)
Operating Pressure: 2000 psi
Burst Pressure: 6000 psi

12AN
Hose I.D: 16.26mm
Hose O.D: 19.30mm
Operating Pressure: 1000 psi
Burst Pressure: 4000 psi

Key Features

PTFE Teflon inner liner for maximum chemical resistance
Braided stainless outer for strength and durability
Suitable for extreme pressure and temperature conditions
Compatible with ethanol, E85, alcohol, brake fluid, and oils
Ideal for motorsport-grade fluid systems
High burst pressure ratings across all sizes
Designed for professional performance and race applications
Precision cut-to-length for custom installations

Compatible With / Applications

Brake systems
Fuel systems (including E85 and alcohol fuels)
Transmission and clutch hydraulics
Power steering systems
Oil feed and return lines
Nitrous and performance injection systems
Hydraulic and vacuum applications
Motorsport, drift, drag, and circuit builds

Built for Performance & Reliability

The NZKW 200 Series PTFE Hose is designed for the most demanding environments where failure is not an option. Its PTFE core resists chemical breakdown while maintaining consistent flow under extreme pressure and temperature, making it a trusted choice for professional motorsport, performance tuning, and high-output engines.
