AN Bulkhead 90 Degree

NZKW AN Bulkhead 90 Degree Fitting – Aluminium Firewall Elbow Pass-Through

The NZKW Australia AN Bulkhead 90 Degree Fitting is designed for clean and efficient fluid line routing through firewalls, panels, and bulkheads in high-performance fuel, oil, and coolant systems. The 90-degree angled outlet helps improve hose alignment in tight engine bays while reducing stress on lines. Ideal for motorsport and performance builds, it delivers a secure, leak-resistant, and professional-grade plumbing solution.

Available Sizes / Options

3AN
4AN
6AN
8AN
10AN

Colours

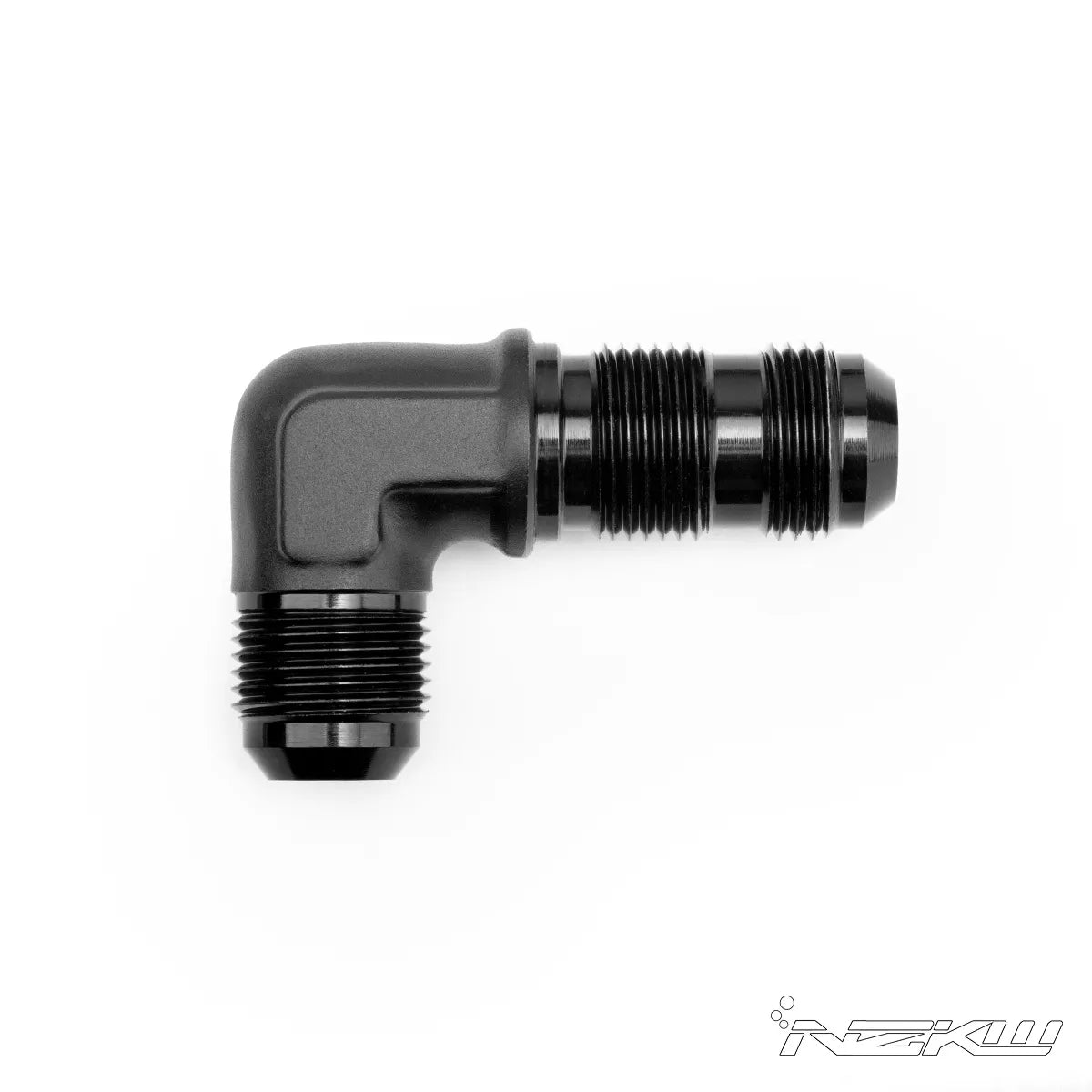

Black

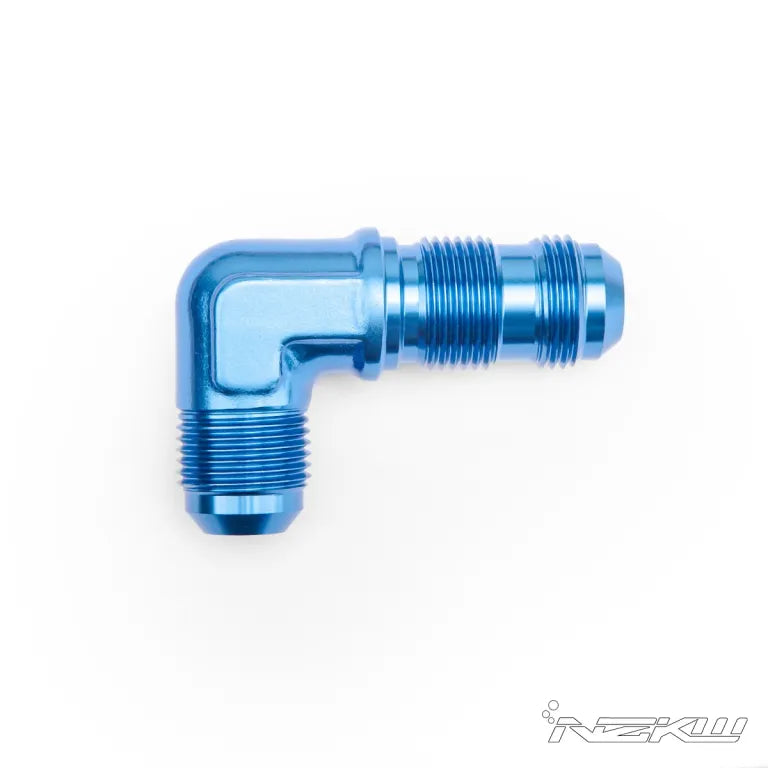

Blue

Specifications

Material: CNC-machined aluminium
Angle: 90 degree bulkhead fitting
Connection type: AN flare to AN flare pass-through
Seal type: Requires 2x PTFE washers (included/required)
Fastening: Requires 1x bulkhead nut
Finish: Anodised for corrosion resistance and durability
Application: Fuel, oil, and coolant systems
Design: Angled bulkhead elbow for improved hose routing

Key Features

90 degree design for optimal hose routing through panels
Provides secure AN bulkhead pass-through connection
CNC-machined aluminium for strength and precision
Anodised finish for long-term corrosion resistance
Reduces hose strain in tight engine bay installations
Compatible with PTFE washer sealing system for leak-free performance
Ideal for professional motorsport plumbing layouts

Compatible With / Applications

Fuel system firewall and chassis pass-throughs
Oil line routing through engine bay panels
Coolant system bulkhead installations
Turbo oil feed and return line setups
Surge tank and performance fuel systems
Motorsport and custom fabrication builds

Built for Performance & Reliability

The NZKW AN Bulkhead 90 Degree Fitting is engineered for demanding environments where space, alignment, and sealing integrity are critical. Its angled design improves hose routing efficiency while maintaining a strong and reliable seal under pressure, heat, and vibration, making it ideal for motorsport and performance applications.

Why Choose NZKW Australia?

🇦🇺 Australian owned and operated
🏁 Years of proven motorsport development and real-world track testing
✅ Trusted by performance workshops, race teams, and enthusiasts
Precision-engineered, premium-quality components built for reliability
🚚 Fast Australia-wide shipping
Designed for street, drift, drag, circuit, and off-road applications
Backed by expert product knowledge and local support
