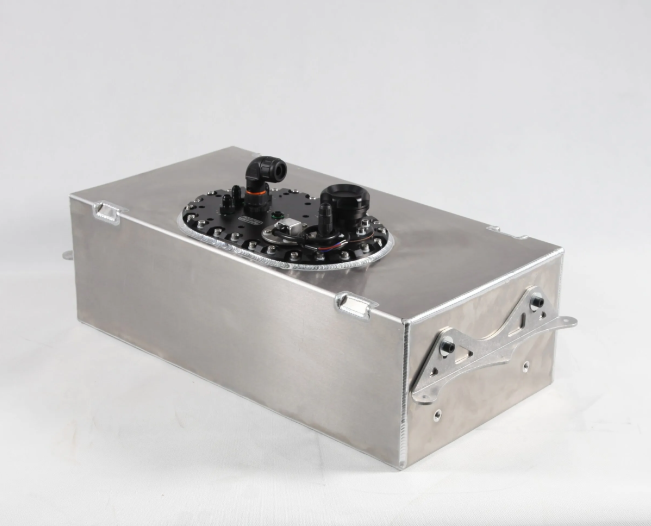

NZKW Australia Alloy Fuel Cell Spec V | 30L & 60L Built-In Surge Tank

Upgrade your fuel system with the NZKW Australia Alloy Fuel Cell Spec V, engineered for high-performance street, race and off-road applications. Built from marine-grade aluminium and designed with an integrated surge tank system, this fuel cell ensures consistent fuel delivery under high-load and high-G conditions.

Featuring a built-in 2.8L surge tank and compatibility with multiple in-tank pump configurations, the Spec V fuel cell is designed for serious performance builds running EFI, turbo or high-output naturally aspirated engines.

Features

• Integrated 2.8L internal surge tank
• Billet T6061 aluminium fuel cradle system
• Weld-on flange supplied with cradle (when purchased together)
• Supports high-flow in-tank pump setups
• Pre-installed yellow baffle foam (E85 safe)
• Fuel level sender included (0–190 Ohm)
• Designed for performance, motorsport and off-road use

Pump Configuration

• Supports up to 3 x AEM 1230 in-tank pumps (Part #50-1230)
• Includes provision for 1 x intake lift pump

Port Configuration

• Outlet: 3 x 6AN ORB
• Return: 1 x 8AN ORB
• Vent: 1 x 6AN
• Filler Cap: 50mm

Available Sizes

30L Fuel Cell

• Capacity: 8 Gallon / 30L
• Dimensions: 605mm (L) x 315mm (W) x 195mm (H)
• Construction: 3mm T5052 marine-grade aluminium
• Foam: Pre-installed yellow baffle foam (E85 safe)

60L Fuel Cell

• Capacity: 16 Gallon / 60L
• Dimensions: 602mm (L) x 417mm (W) x 242mm (H)
• Construction: 3mm T5052 marine-grade aluminium
• Foam: Pre-installed yellow baffle foam (E85 safe)

Why Buy This Product?

• Built-in surge tank eliminates fuel starvation
• Supports high-flow multi-pump setups
• Compatible with ethanol (E85) fuel systems
• Heavy-duty marine-grade aluminium construction
• Pre-installed foam improves fuel control under cornering
• Includes fuel sender for accurate level monitoring
• Ideal for high-performance and motorsport applications

Ideal For

• Turbocharged builds
• Drift cars
• Circuit racing
• Drag racing
• Off-road 4WD builds
• High horsepower street cars
• E85 fuel systems

Package Includes

• 1 x NZKW Australia Alloy Fuel Cell Spec V (selected size: 30L or 60L)
• Integrated 2.8L surge tank
• Fuel level sender (0–190 Ohm)
• Pre-installed baffle foam
• Port fittings as specified
