NZKW Australia Universal Bucket Seat Base Mount for ease of fabricating and installing a level base seat mount for aftermarket seat mounting.
All dimensions are in the photos below
Compatible: with Dual lock seat sliders, L brackets and NZKW aftermarket seats

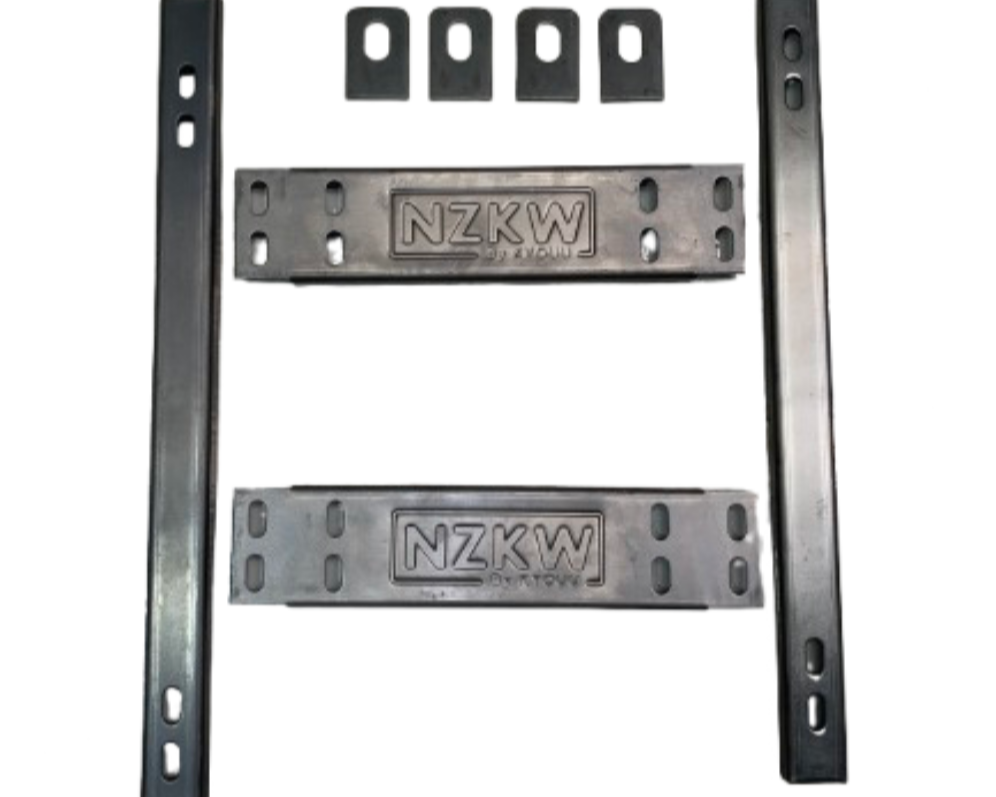

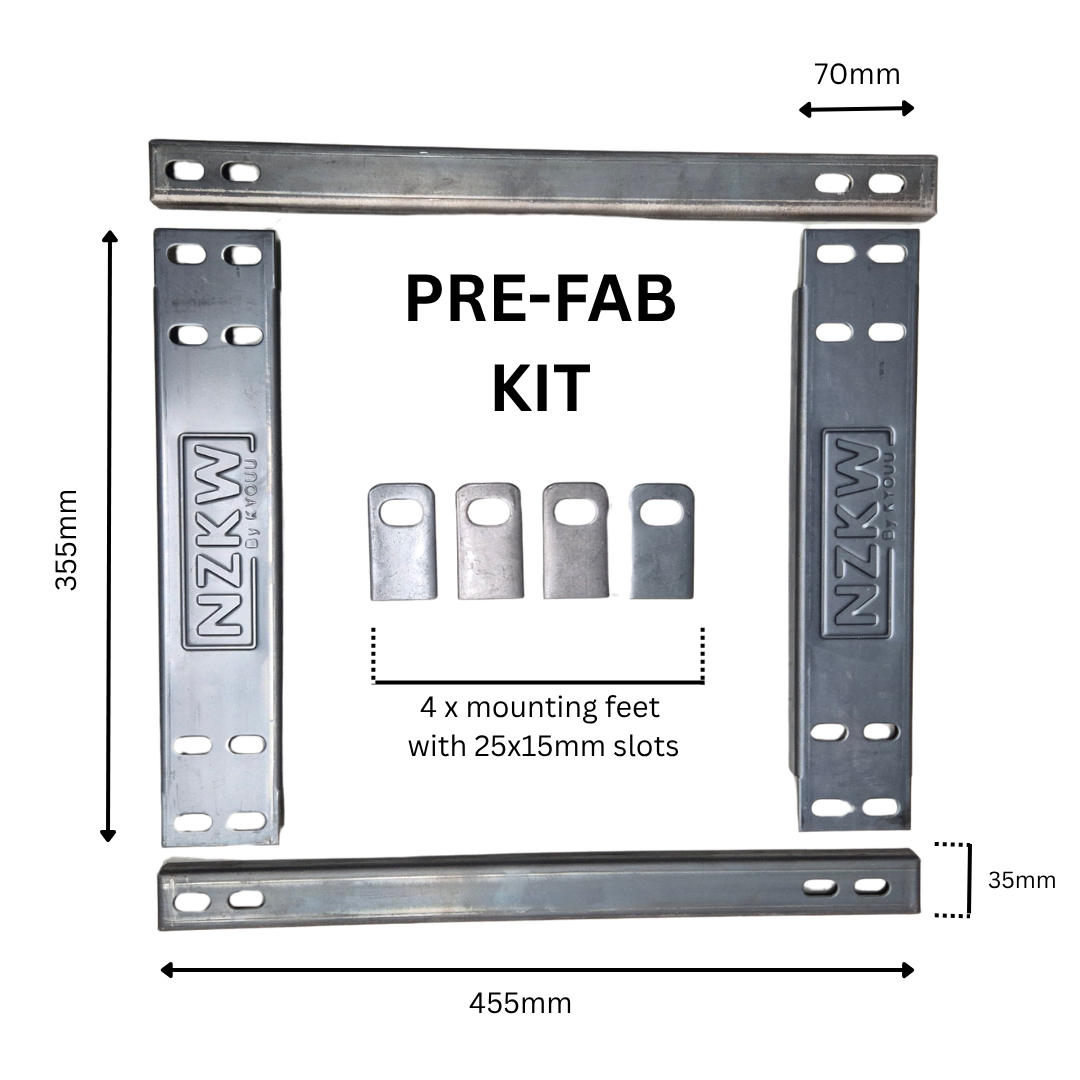

Pre-Fab Kit:
- All components require welding - additional material may be required for some applications- Does require engineer approval - Non ADR Approved

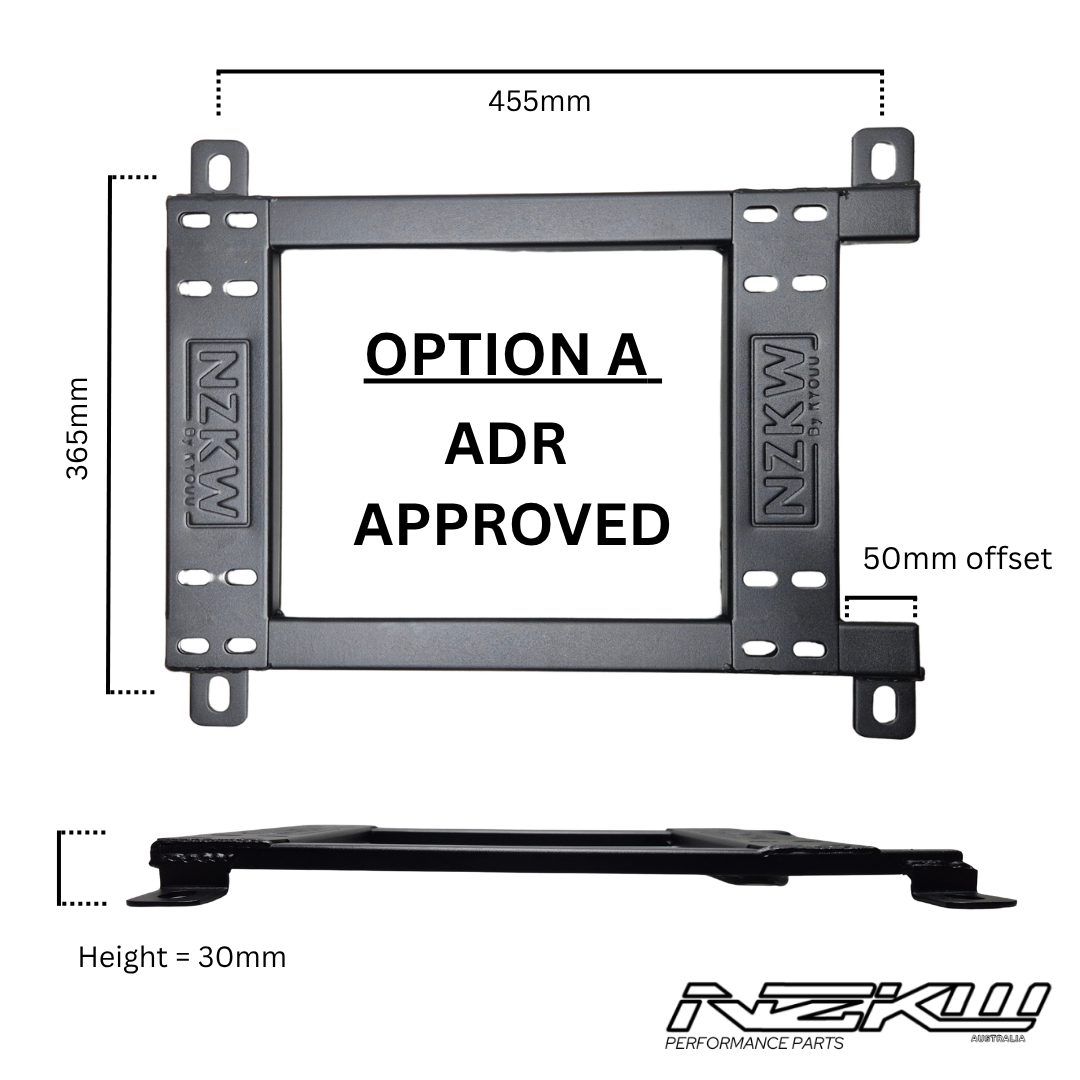

Option A:
- Universal Mount with 50mm Offset - Can be used for Left or Right - ADR Approved if unmodified
Mounting Width: Maximum = 385mm / Minimum = 340mm
Mounting Length: Maximum = 470mm / Minimum = 440mm

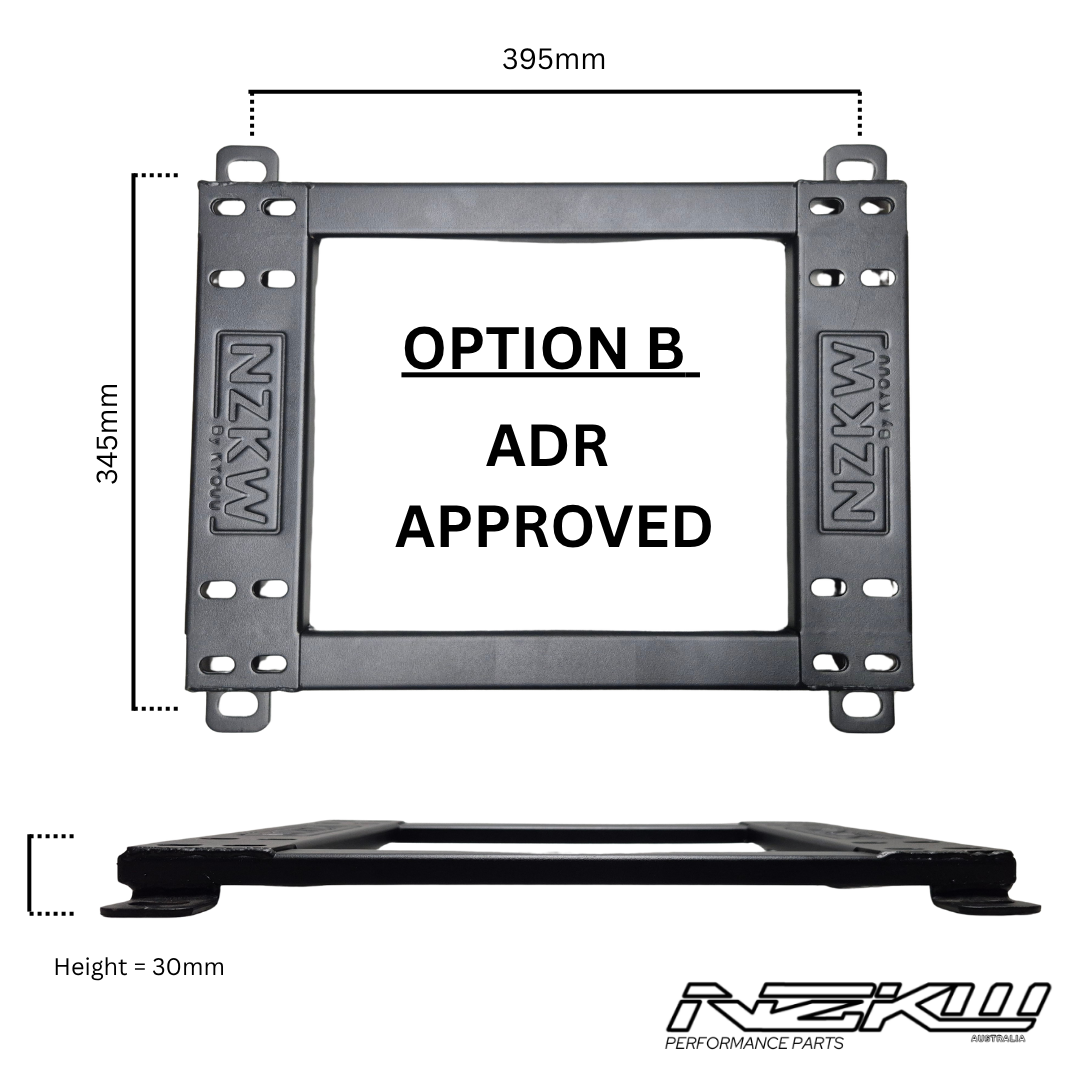

Option B:
- A small footprint and square base with no offset option - Can be used for Left or Right -ADR Approved if unmodified

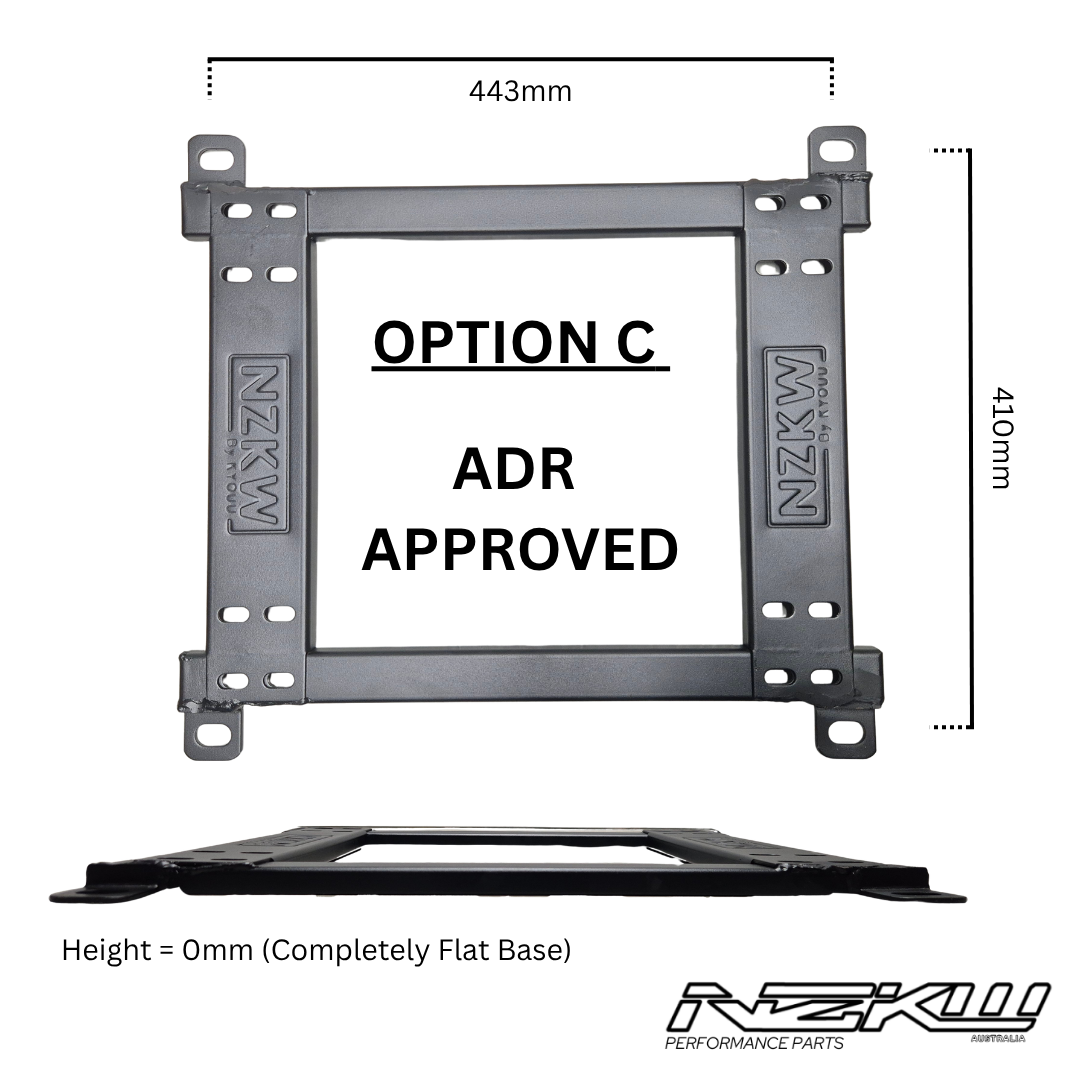

Option C:
- Largest option, completely flat base and no offset- Can be used for Left or Right- ADR Approved if unmodified
Mounting Width: Maximum = 425mm / Minimum = 395mm
Mounting Length: Maximum = 465mm / Minimum = 415mm

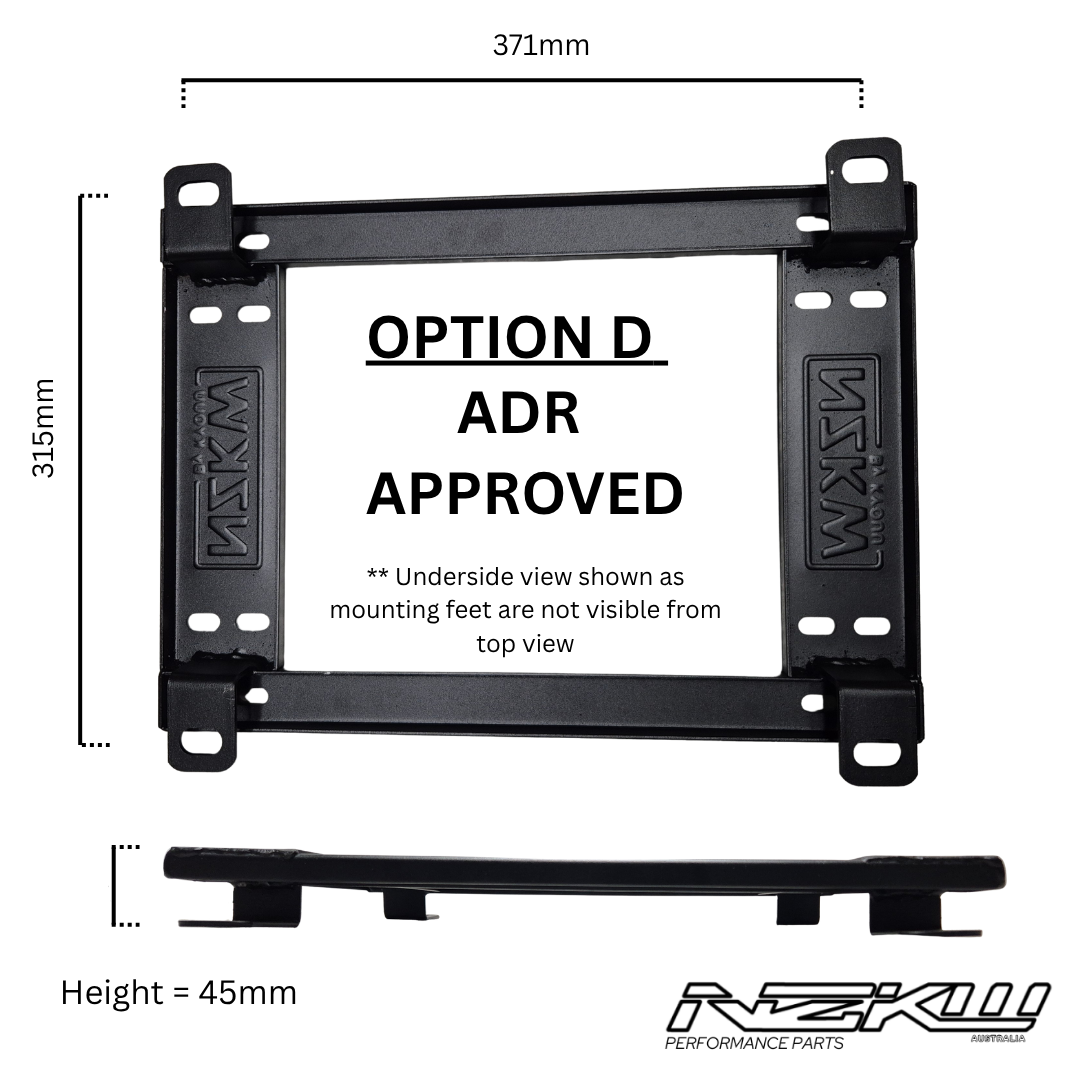

Option D:
- The smallest footprint mount base (close to option B) with raised frame by 45mm, mounting feet on underside-Can be used for Left or Right - ADR Approved - if unmodified
Mounting Width: Maximum = 325mm / Minimum = 300m
Mounting Length: Maximum = 395mm / Minimum = 350mm
